Building apps is a system design exercise

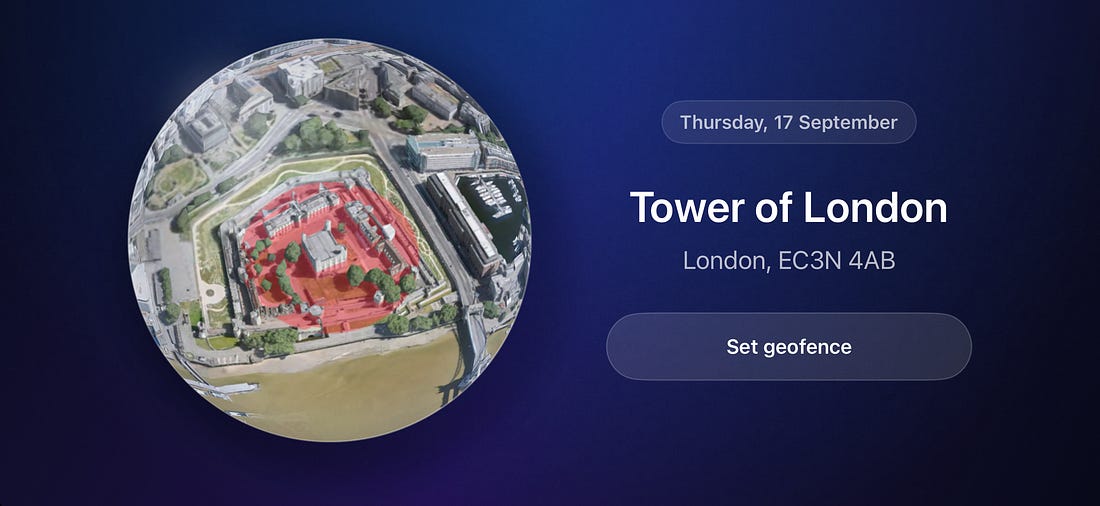

Real talk: AlarmKit is my favourite API Apple has ever released. It lets users schedule full-screen takeover alerts that go through silent mode, and force a user to remember something. It’s a great fit for any app that works better with a little reminder. You can even set custom alarm sounds *(now that they fixed the API). But we’re only scratching the surface. AlarmKit has an enormous hidden potential that nobody has really noticed yet: You do not need your app to be running to schedule an alarm. I first discovered this when mucking about with geofences. If you enable background location permissions, you can wake up your app in the background when you trip the geofence. During that wakeup window, you can call AlarmManager.shared.schedule to schedule an alarm for right now.
But we can go further. You can also schedule alarms from inside a notification service extension. This is a small app target you can build that allows code to run upon receiving a notification, designed so you can preload images, video, or audio content before displaying it.
Lo and behold, after hacking together a local notification server and testing it out, I discovered that this can also schedule alarms for right now. You can also set and use a custom sound. As well as performing a network request or two. AlarmKit. Notification extensions. Custom alarm sounds. A network request. AlarmKit. Notification extensions. Custom alarm sounds. A network request. Are you getting it?? Sponsored Link
This post is so full of knowledge, your email client will probably cut it off. To get the best experience, read on my website here. UltraPing is bornIf you prefer to read my blog for the fun ride, and not for the mental stimulation, UltraPing ties together the hidden powers of AlarmKit: You record a message. This sends another user a push notification. This push downloads your message, then schedules an alarm for right now using the recording as the custom sound. Your voice recording is delivered to the other user as an interrupting full-screen takeover, making certain (pending notification delivery) they hear what you have to say, now. Let’s go back 1.5 yearsUnlike my second-born, this project arrived a year late, borne out of a longstanding frustration with my former newborn: as any young parent knows, you’ll often sleep in different rooms to attend to the kids. But you might not be the first to wake up when the baby cries, even if it’s your turn. The natural solution my wife landed on was to wake me up with THE FIND MY ALERT SOUND, a whiplash which was subsequently seared into my nervous system.
I’d just been saddled with on-call rotation at work, with PagerDuty set up: it could fire critical alerts to me, which also had configurable notification sounds*.

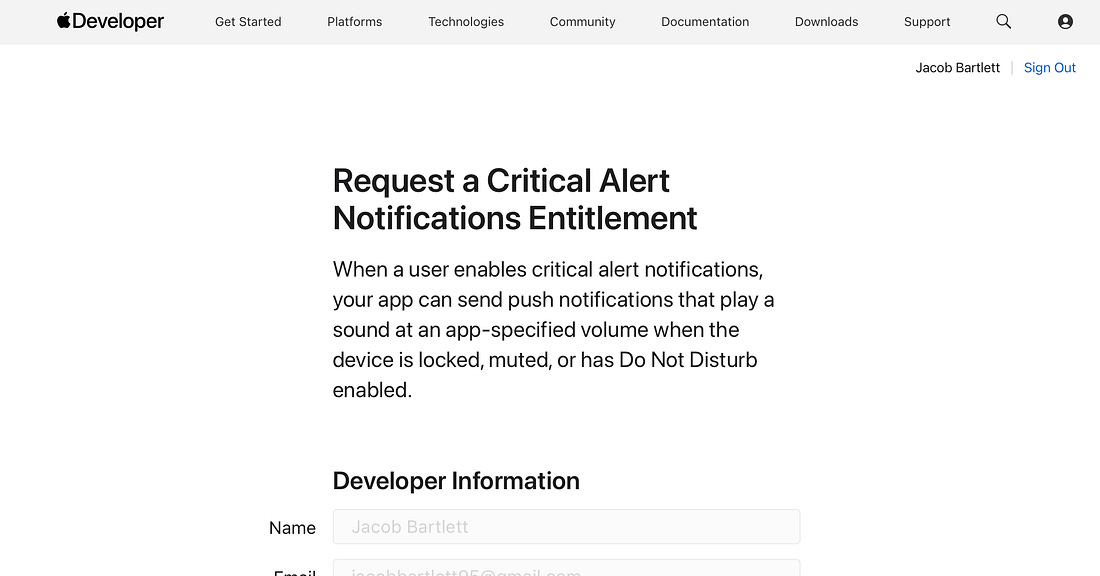

This got me thinking. Perhaps I can implement critical alerts to wake me up a little more gently? Unfortunately, Apple has this entitlement locked DOWN. You can’t even use it in development without filling in a form, and hoping Apple approves your use case. They sadly did not sympathise with my plight. I resigned myself to Find My and parked my dream.
But today, with AlarmKit, I realise I could realise my dream (subject to App Store approval).

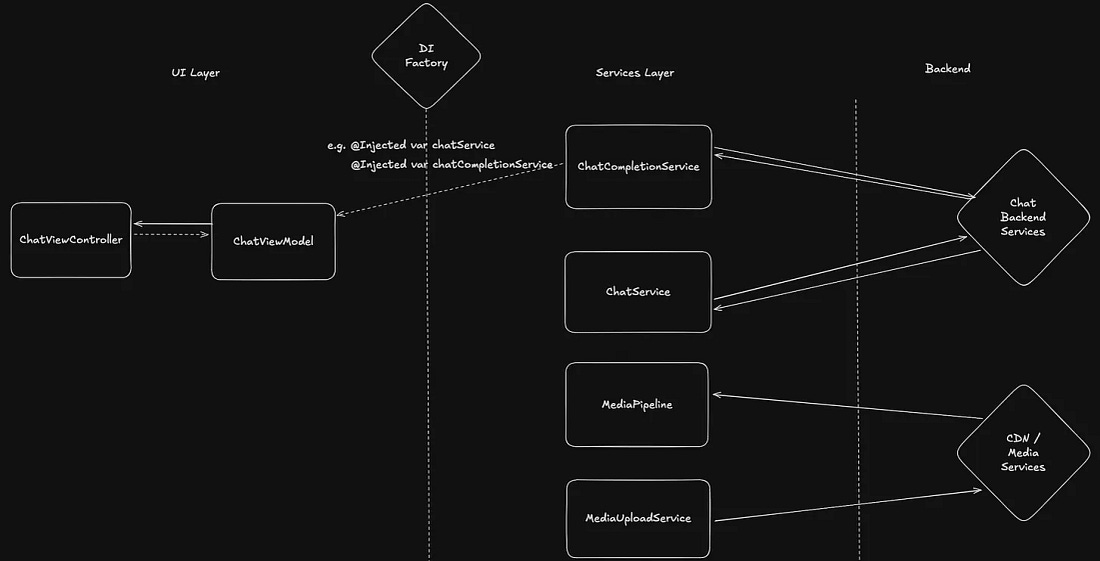

System DesignUnless you get a kick out of it, you probably aren’t hand-rolling a lot of your code these days. But system design is more important than ever. I’ve spent many a cognitively taxing day this year puzzling out performance traces across a whole system, between app, backend, and LLM. The abstraction level that matters the most is the system: the boxes that perform each job, and the connections between them.
Particularly when it comes to side projects, knowing the big-picture of your system allows us to play fast and loose with the code, while still delivering working products with confidence (and keeping a careful tab on what’s really important; I’m looking at you, Firebase Cloud Functions). The problem still exists, but we’re working at the abstraction level of boxes on a screen. We pay $20/month for perfect execution machines, but we’re still handling the high-level important architectural decisions. UltraPing is a phenomenal example because it pretty much allows us to work through the basic building blocks of full-stack system design: app, server, database, object storage, and notification services. Let’s design UltraPing, step by step. There’s 4 layers to work through:
Proving the conceptOur first piece of design tested the two biggest uncertainties:

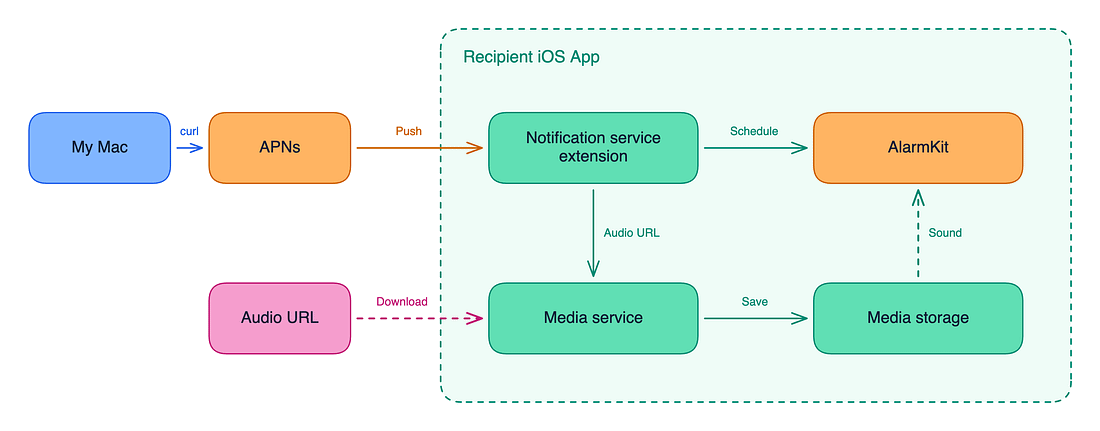

No “proper” backend required at this point: we can use macOS command line tools to send test push notifications to our iOS app, using a simple curl command. As part of the payload, we include a random .caf download link for our alarm sound, then wire up the notification service extension of our POC to download this and schedule an alarm.
The mutable-content flag and alert property make the notification eligible to handle inside a notification service extension. So we can set this up in our POC. The extension handles downloading the sound, storing it in the app’s local file system (using app groups), and triggering the alarm.
All this code lives in the Notification Service Extension, storing the downloaded media into the App Group’s shared Library/Sounds directory, then scheduling AlarmKit directly. In 20 minutes of hacking, we’ve proved the concept, and now we can move into the next phase of our system design. Recording and the object serverWe’re sort of working backwards here, but it’s important to experiment with the greatest uncertainties before everything else. We’ve proven the two big questions:
